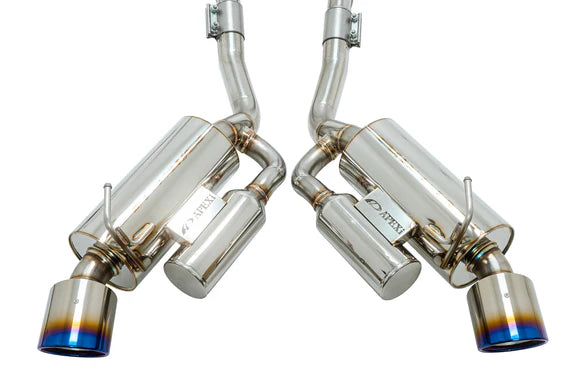

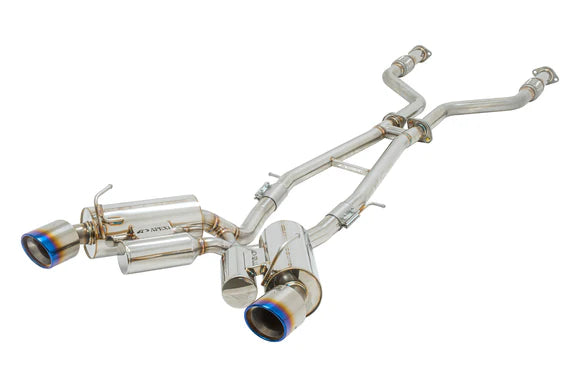

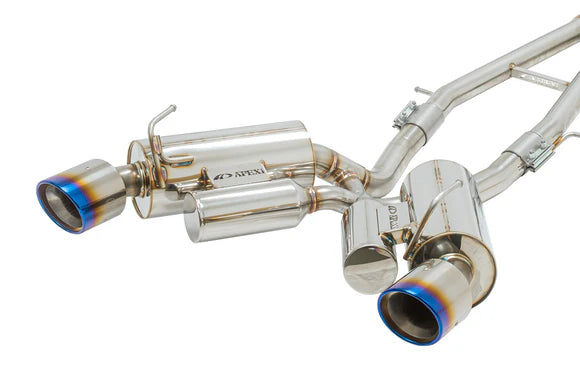

A'PEXi - N1 Evolution Extreme (Catback) - 2024+ Nissan Z NISMO (RZ34)
The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradation appearance.
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
| Bolt-On | Yes |
|---|---|
| Part Number | 164-KN02 |
| Year | 2023+ |
| Make | Nissan |
| Model | Z (RZ34 : Z / Fairlady Z) Nismo Z (5BA-RZ34 ) |
| Body Style | 2-Door Fastback Coupe |
| Engine | VR30DDTT |
| Chassis | RZ34 |
| Exhaust Type | N1 Evolution Extreme |
| Piping Diameter | 60mm (x2) -> 65mm (x2) |
| Tip Diameter | 123mm (x2) |
| Pieces | 4 |
| Exhaust Tip Style | Titanium Round- Dual wall rolled, Angle cut (Riveted) |
| Piping Material | SUS304 Stainless Steel |
| Muffler Material | SUS304 Stainless Steel |
| Muffler Tip Material | TP270 Titanium |
| Special Notes | Optimized fitment for Nissan Z NISMO models, but it can be installed with Non-NISMO models as well. |
 |
