A'PEXi - N1 Evo Extreme (Axleback) - 2016+ Lexus GS-F

SKU164-KT12
$1,699.00
Call for stock status
Pay over time with Affirm on orders over $35. See if you qualify
ITEM MATERIALTitanium

Ask a Question

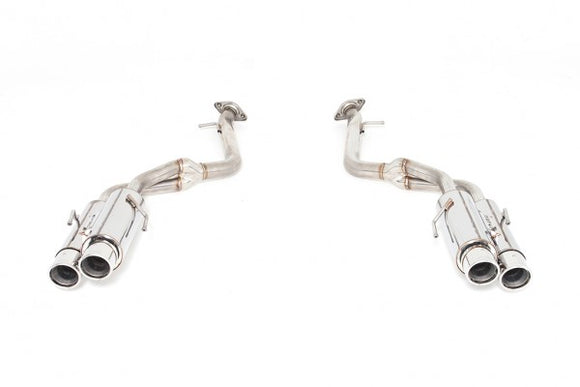

About: A'PEXi - N1 Evo Extreme (Axleback) - 2016+ Lexus GS-F

Fast U.S. Shipping
Authorized Dealer
Call To Confirm Stock

N1-X Evolution Extreme Muffler Axleback Exhaust (Stainless Steel & Titanium Tips)2016+ Lexus GS-F The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance. PRODUCT FEATURES:

Features

  • TIG-welded SUS304 stainless steel construction
  • Matched and manufactured for select chassis
  • Patented megaphone piping structure for torque and throttle response; the design creates a swirling exhaust-gas flow

Specifications

  • Part Number: 164-KT12 (Titanium Tips); 164AKT12 (Stainless Tips)
  • Exhaust Type: N1 Evolution Extreme Muffler (N1-X)
  • Piping Diameter: 65mm. x 2 - 50mm. x 4
  • Tip Diameter: 93mm. x 4
  • Exhaust Tip Style: Stainless Steel Round- Dual wall rolled, Angle cut (Riveted)
  • Pieces: 2
  • Piping Material: SUS304 Stainless Steel
  • Muffler Material: SUS304 Stainless Steel
  • Muffler Tip Material: TP270 Titanium (164-KT12); SUS304 Stainless Steel (164AKT12)
  • System Weight: 34.20 lbs. (Stock- 41.30 lbs.)
  • Sound Level: Sound Level: 91.3 dB @ 4,500 RPM. Modular design:Midpipe and Rear Section can be interchanged with factory exhaust components.
  • Bolt-On Installation: Yes

Fitment

  • Year: 2016-2020
  • Make: Lexus
  • Model: GS-F
  • Body Style: 4-Door Sedan
  • Engine: 2UR-GSE
  • Chassis: URL10

Notes

  • Modular design:Rear Section can be interchanged with factory exhaust components.
BrandA'pexi
TypeAxle-Back Exhaust
SKU164-KT12
Weight30.0 lb
Make["Lexus"]
Model["GS"]
