2016-2017 Lexus RC200t
2015+ Lexus RC300
2015+ Lexus RC350 AWD/RWD

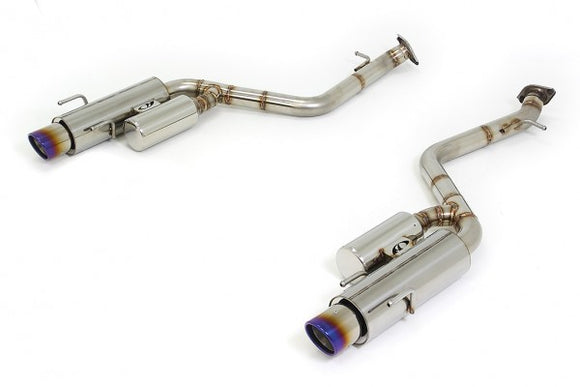

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradation appearance.

PRODUCT FEATURES:

High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
Matched and manufactured for select chassis
Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
Bolt-On
Yes
Part Number
Titanium : 164-KT02
Stainless Steel : 164AKT02
Year
2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
Make
Lexus
Model
RC200t, RC300 AWD, RC350, RC350 AWD, RC350 RWD
Body Style
2-Door Coupe
Engine
8AR-FTS, 2GR-FE, 2GR-FSE
Chassis
ASC10, GSC10, GSC15, GSC16
Exhaust Type
N1 Evolution Extreme Muffler (N1-X)
Piping Diameter
60.5mm. x 2
Tip Diameter
93mm. x 2
Pieces
2
Exhaust Tip Style
Titanium Round- Dual wall rolled, Angle cut (Riveted)
Piping Material
SUS304 Stainless Steel
Muffler Material
SUS304 Stainless Steel
Muffler Tip Material
Titanium
System Weight
53.5 lbs. (Rear Section only) (Stock- 60.37 lbs.)
Special Notes
Sound Level: 87 dB @ 4,500 RPM. Modular design-> Midpipe and Rear Section can be interchanged with factory exhaust components. ***NOTE: Do not use harsh car wash soap or metal polish cleaners when cleaning titanium tips. We recommend using standard isopro
