A'PEXi - N1 Evo Extreme (Midpipe) - 2022+ Lexus IS500

4.9 (1 reviews)
SKU144-KT13
$1,399.00
Call for stock status
Pay over time with Affirm on orders over $35. See if you qualify
RESONATOR OPTIONResonated

Ask a Question

About: A'PEXi - N1 Evo Extreme (Midpipe) - 2022+ Lexus IS500

Fast U.S. Shipping
Authorized Dealer
Call To Confirm Stock

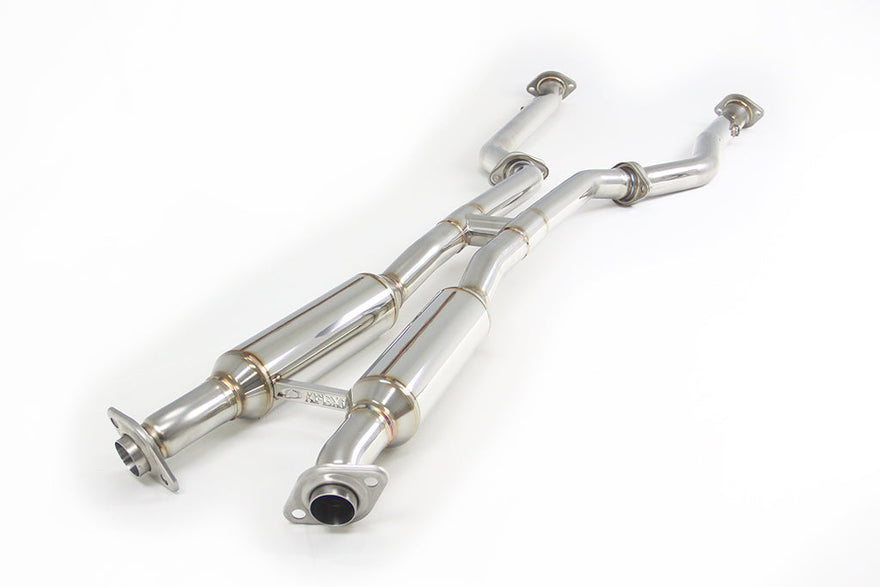

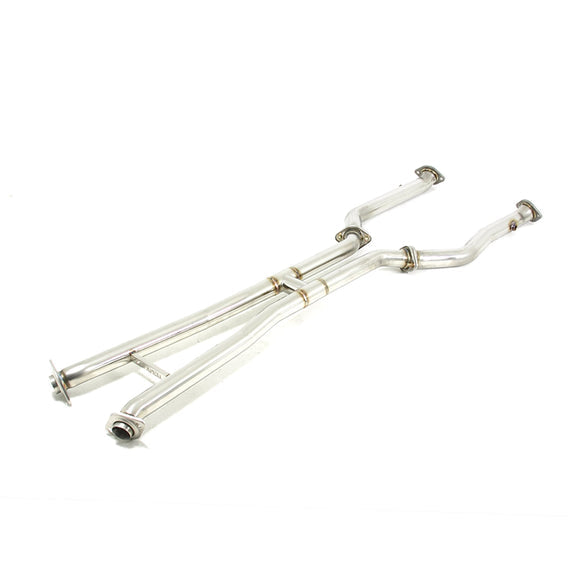

The N1 Evolution Extreme mid-pipe runs parallel between the catalytic converter and the rear muffler section, using an H-style layout to equalize pressure between both pipes. Its modular design is interchangeable with factory exhaust components; the rear section is sold separately.

Features

  • TIG-welded SUS304 stainless steel construction
  • Patented megaphone piping structure for torque and throttle response; the design creates a swirling exhaust-gas flow
  • Compatible with the N1-X Evolution Extreme rear section part number 164-KT21 (Titanium Tips) or 164AKT21 (Stainless Steel Tips)

Specifications

  • Part Number: 144-KT13: Resonated; 144-KT13P: Non-Resonated
  • Exhaust Type: N1 Evolution Extreme Muffler (N1-X)
  • Piping Diameter: 65mm. x 2 - 50mm. x 4
  • Pieces: 3
  • Piping Material: SUS304 Stainless Steel
  • System Weight: Mid-pipe only 25.90 lbs. (Stock- 35.50 lbs.) 7.6 lbs. lighter than OEM
  • Bolt-On Installation: Yes

Fitment

  • Year: 2022-2025
  • Make: Lexus
  • Model: IS500
  • Body Style: 4-Door Sedan
  • Engine: 2UR-GSE
  • Chassis: USE30

Notes

  • Sound Level (with part # 164-KT21 or 164AKT21): Resonated- 93.1 dB, Non-Resonated- 95.7 dB @ 4,500 RPM. Modular design: Mid-pipe and Rear Section can be interchanged with factory exhaust components.
  • Replacement gaskets: Front Section (Header to Midpipe) x2; P105 x D66.5: 3901-1650; Mid Section (Center of the Midpipe Kit) x2; P97 x D66.5 : 3901-1660; Rear Section (Connecting to Rear Axleback) : Factory OE Donut Gasket (Lexus OE Factory product)
