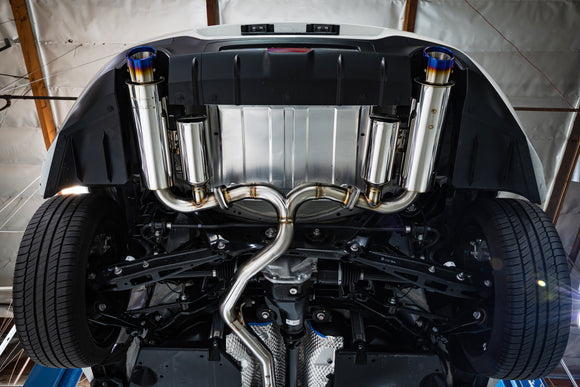

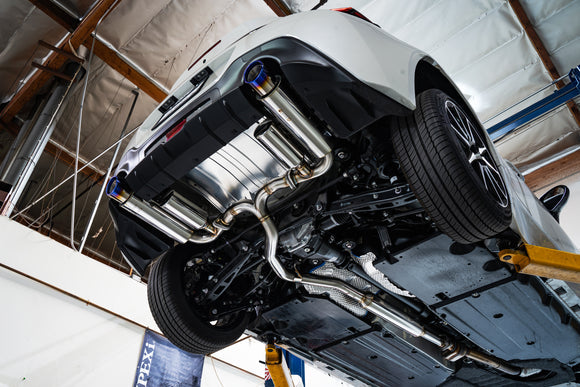

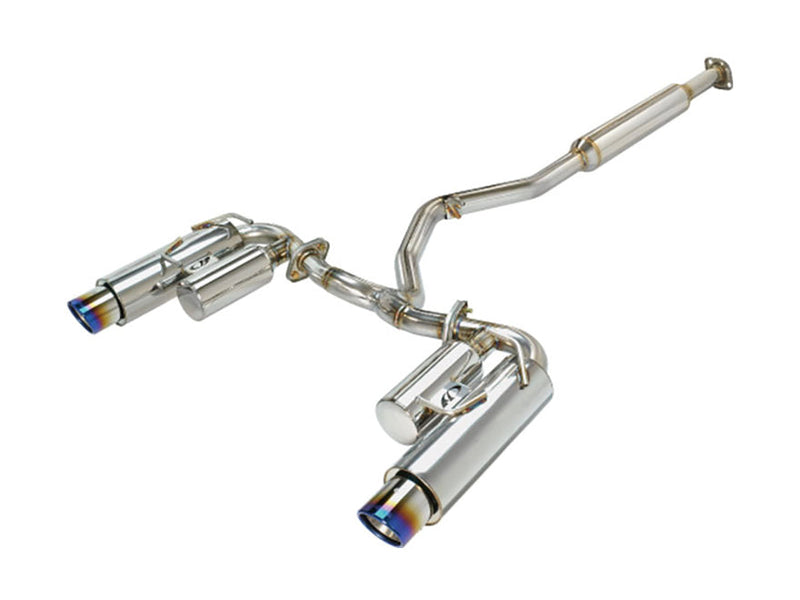

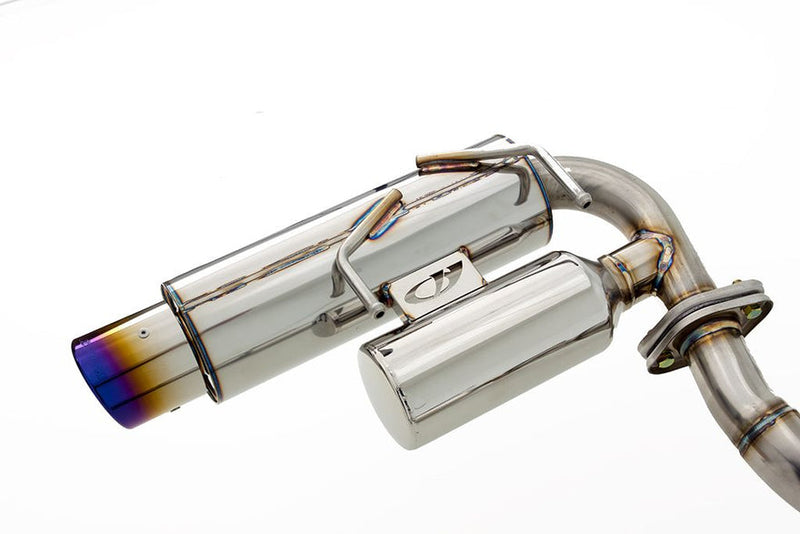

The A'PEXi N1 Evolution Extreme (N1-X) builds on the straight-through layout of the N1 muffler. An internal hybrid silencer balances flow with sound resonance, and the titanium tip is rolled and riveted onto a double-pipe structure that acts as a diffuser to reduce temperature, with a heat-gradation finish.
Features
- TIG-welded SUS304 stainless steel construction
- Matched and manufactured for select chassis
- Patented megaphone piping structure for torque and throttle response; the design creates a swirling exhaust-gas flow
Specifications
- Part Number: 164-T008J
- Exhaust Type: N1 Evolution Extreme Muffler (N1-X)
- Piping Diameter: 60mm. to 54mm. x 2
- Tip Diameter: 93mm. x 2
- Exhaust Tip Style: Titanium Round- Dual wall rolled, Angle cut (Riveted)
- Pieces: 3
- Piping Material: SUS304 Stainless Steel
- Muffler Material: SUS304 Stainless Steel
- Muffler Tip Material: TP270 Titanium
- System Weight: 31.00 lbs.
- Bolt-On Installation: Yes
Fitment
- Year: 2013-2027
- Make: Toyota, Scion, Subaru
- Model: FRS, 86, GR86, BRZ
- Body Style: 2-Door Coupe
- Engine: 2.4 L FA24D H4; 2.0L FA20 H4
- Chassis: ZN6, ZC6, ZN8, ZD8
Notes
- Package Dimension: 84"x12"x20", Package Weight: 47 lbs.
| Brand | A'pexi |
|---|---|
| Type | Cat-Back Exhaust |
| SKU | 164-T008J |
| Weight | 30.0 lb |
| Make | ["Scion","Subaru","Toyota"] |
| Model | ["FR-S","BRZ","86","GR86"] |
| Material | ["gid://shopify/Metaobject/91049197865","gid://shopify/Metaobject/90679279913"] |
| Manufacturer Type | ["gid://shopify/Metaobject/90137755945"] |
