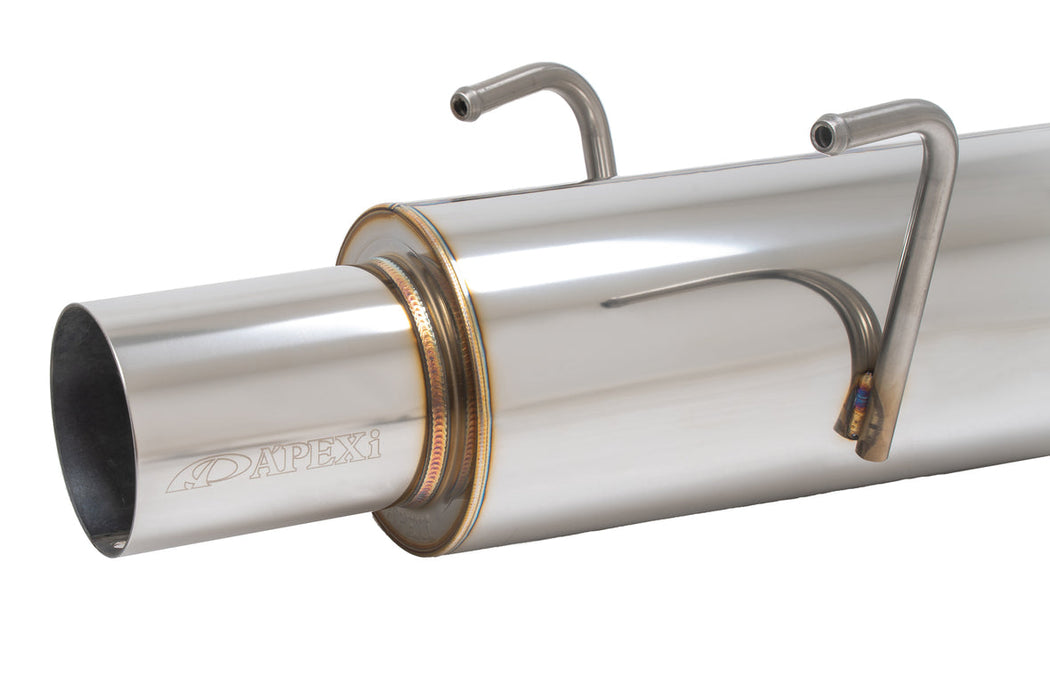

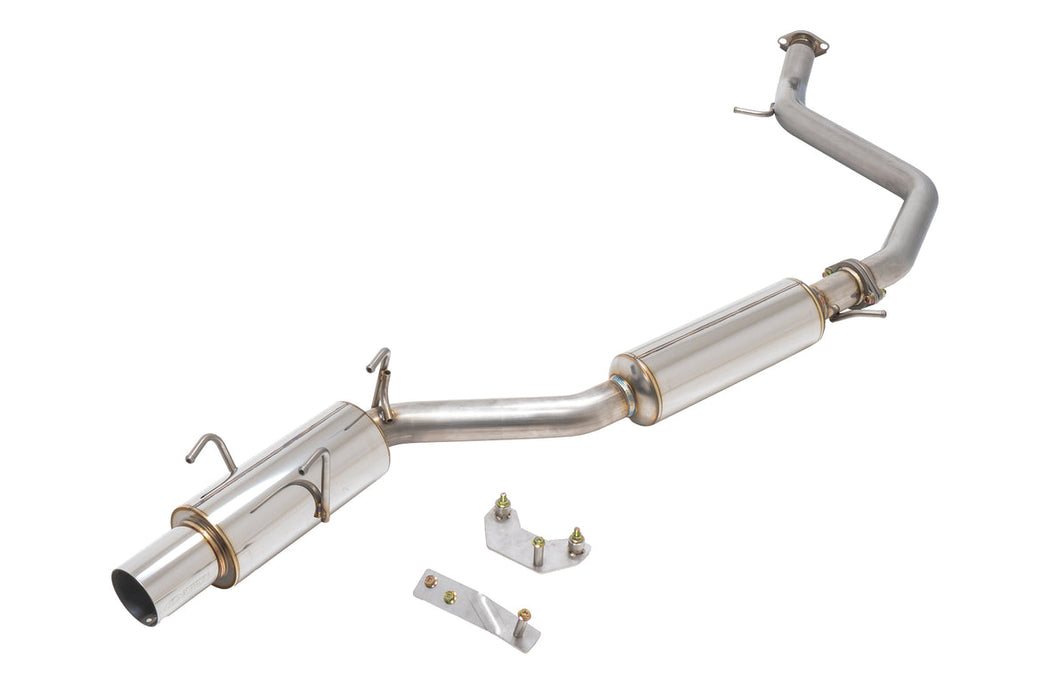

Developed from A'PEXi's N1 endurance racing program, the N1 pairs a straight-through racing muffler with free-flowing mandrel-bent piping (63.5mm (2.5inch)) in A'PEXi's classic angled-muffler design. The polished SUS304 stainless steel canister is robotically TIG welded. The N1 Evolution-R adds lightweight, fully polished stainless steel piping and uses a minimal number of pipe bends for exhaust flow.
Specifications
- Part Number: 192KT002
- Exhaust Type: N1 EVO-R
- Piping Diameter: 63.5mm (2.5inch)
- Tip Diameter: 90mm
- Exhaust Tip Style: N1 EVO-R Muffler Tips
- Pieces: 2
- Piping Material: SUS304 Stainless Steel
- Muffler Material: SUS304 Stainless Steel
- Muffler Tip Material: SUS304 Stainless Steel
- Bolt-On Installation: Yes
Fitment
- Year: 2019-2022
- Make: Toyota
- Model: Base, SE, XSE (Factory OE Bumper Diffuser must be removed/modified OR matched with TOM'S Racing Diffuser PN: TMS-52159-TZE21-F )
- Body Style: 4-Door
- Engine: M20A-FXS
- Chassis: MZEAZ12
Notes
- Will NOT fit factory diffuser, options on how to run this exhaust: 2019~2022 - Equip with TOM'S Racing Diffuser- Remove Toyota OE Lower Diffuser - Trim and modify the lower piece OE Diffuser 2023+ - Trim and modify the lower piece OE Diffuser- Replace the OE Factory Toyota Valance Panel to 2019~2022 Toyota Corolla Hatchback model without OE Lower Diffuser or Trim and Modify 2019~2022 Lower OE Diffuser- Replace the OE Factory Toyota Valance Panel to 2019~2022 Toyota Corolla Hatchback model with TOM'S Racing Diffuser Comes with additional hanger bracket for the proper left side-exit.
| Brand | A'pexi |
|---|---|
| Type | Cat-Back Exhaust |
| SKU | 192KT002 |
| Weight | 30.0 lb |
| Make | ["Toyota"] |
| Model | ["Corolla"] |
| Material | ["gid://shopify/Metaobject/91049197865","gid://shopify/Metaobject/90679279913"] |
| Manufacturer Type | ["gid://shopify/Metaobject/90137755945"] |
