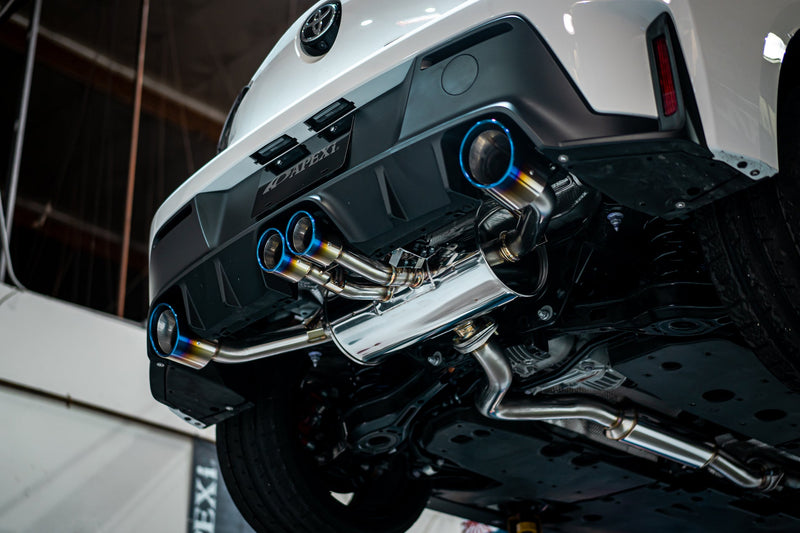

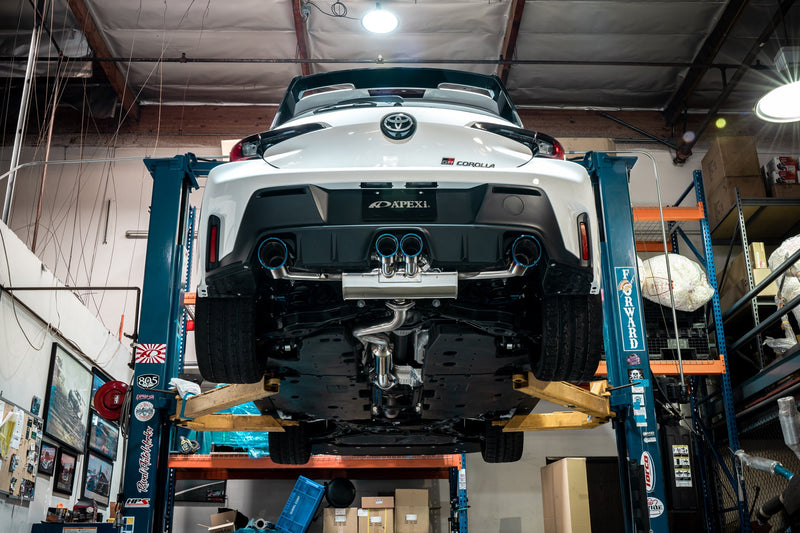

A'PEXi - N1 Evo Extreme (Valved Quad-Type Catback) - 2023+ GR Corolla

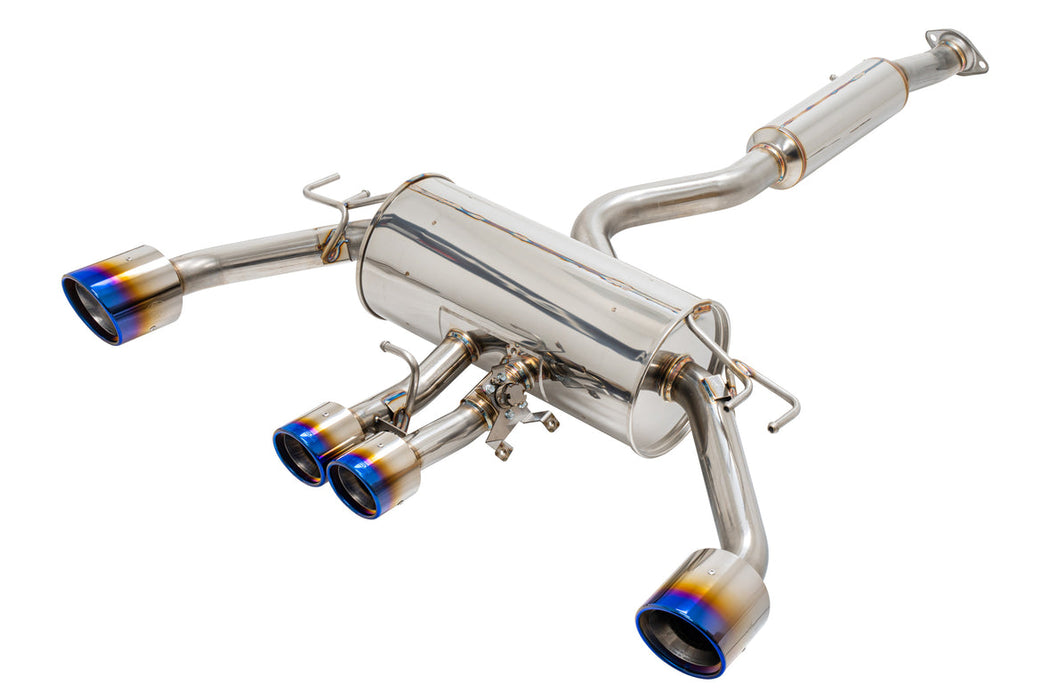

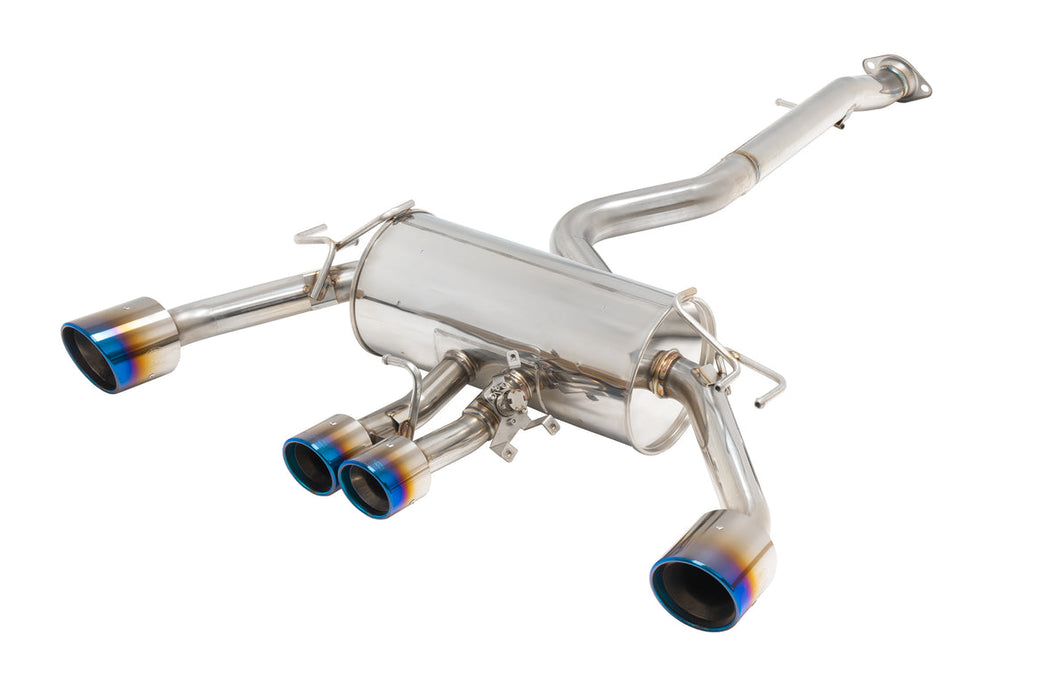

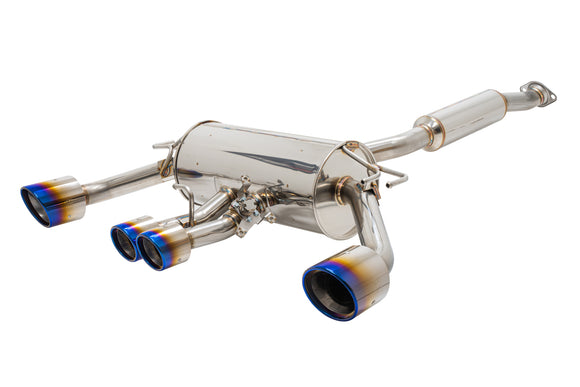

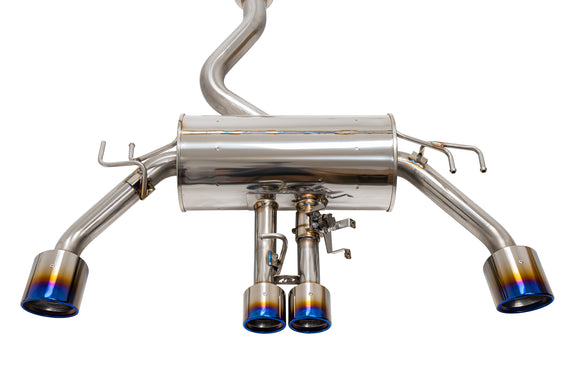

The A'PEXi N1 Evolution Extreme (N1-X) builds on the straight-through layout of the N1 muffler. An internal hybrid silencer balances flow with sound resonance, and the titanium tip is rolled and riveted onto a double-pipe structure that acts as a diffuser to reduce temperature, with a heat-gradation finish.

Specifications

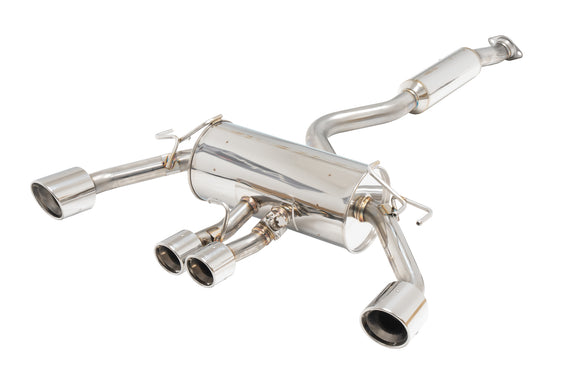

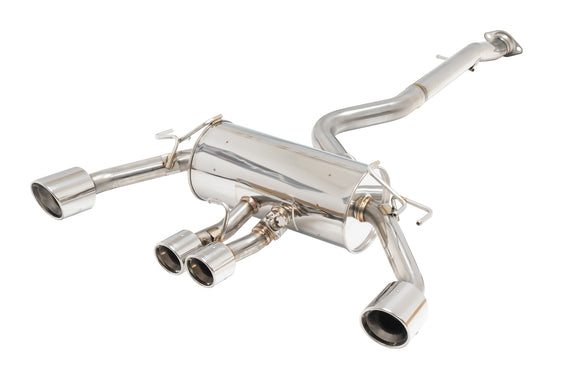

• Part Number: 164-KT23 : Titanium Tips164AKT23 : Stainless Steel Tips
• Exhaust Type: N1 Evolution Extreme Muffler (N1-X)
• Piping Diameter: 70mm - 60.5mm (Outer Left/Right) x 2 Piping70mm - 50.8mm (Center Dual) x 2 Piping

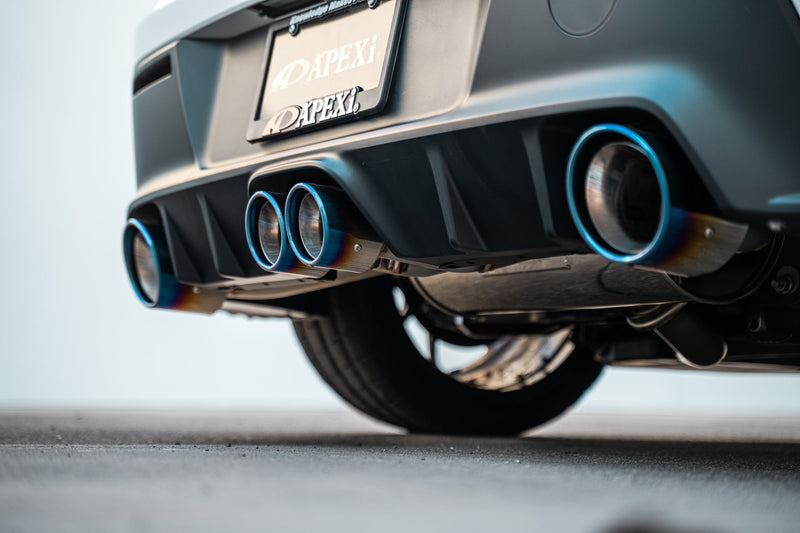

• Tip Diameter: Two Center Dual Tips - 93mmTwo Outer Tips - 123mm

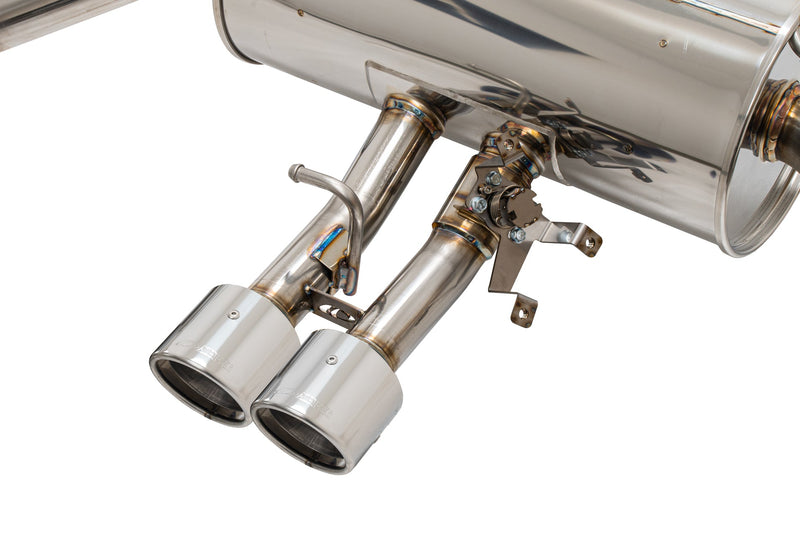

• Exhaust Tip Style: Titanium Round; Dual wall rolled, Angle cut (Riveted); Stainless Steel Round; Dual wall rolled, Angle cut (Riveted)
• Pieces: 2
• Piping Material: SUS304 Stainless Steel
• Muffler Material: SUS304 Stainless Steel Tip Material - TP270 Grade - Titanium (Heat Treated Gradient Tips)- SUS304 Stainless Steel - Polished
• Bolt-On Installation: Yes ✅

Fitment

• Year: 2023+
• Make: Toyota
• Model: GR Corolla
• Body Style: 5-Door Hatchback
• Engine: G16E-GTS
• Chassis: MZEAZ12

Notes

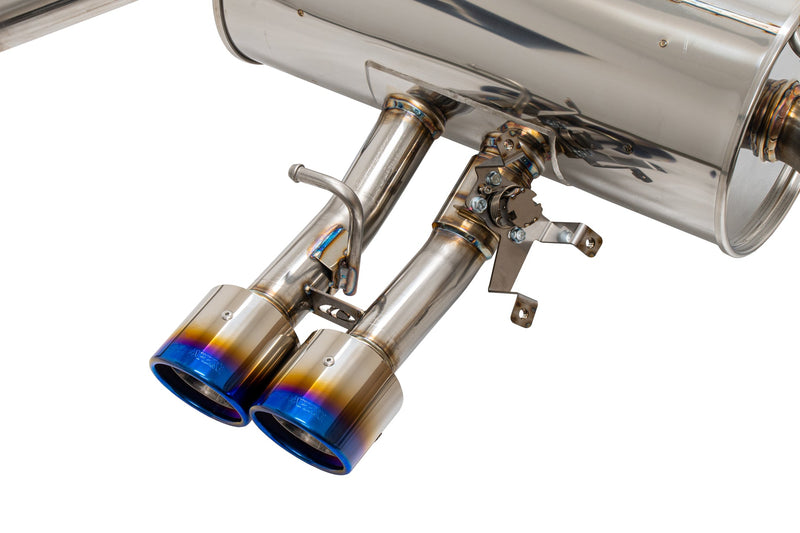

• Integrated Valved compatible with Factory OE Electronic Module
