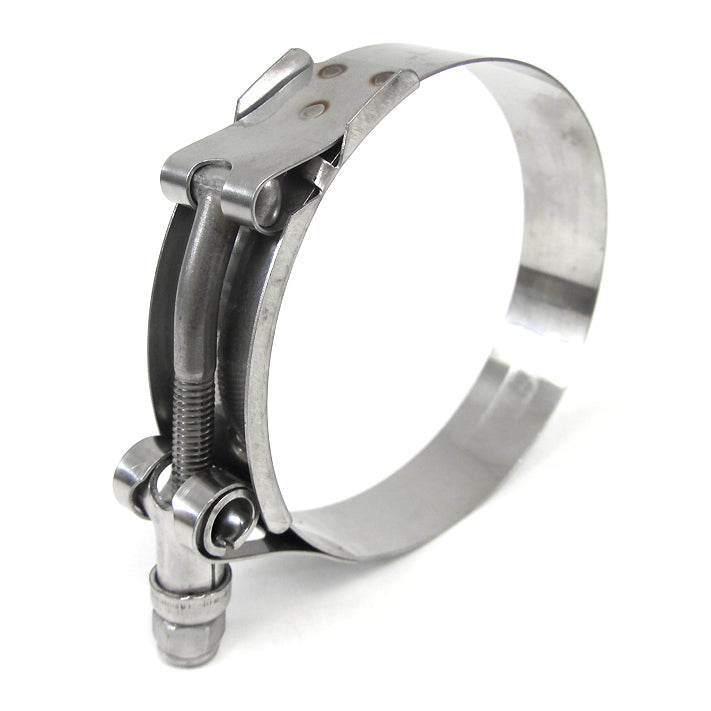

HPS 316 Marine Grade Stainless Steel T-Bolt Clamp (316-SSTC-48-56)

HPS 100% marine grade 316 stainless steel T Bolt hose clamps with effective range 1.89" - 2.2" (48mm-56mm) perform well in saltwater applications and offer better corrosion resistance than the standard 304 T-bolt band clamp; therefore 316 tbolt clamps are commonly used to provide leak-proof connections on marine engine and exhaust systems. Fits HPS silicone hose with 1-5/8" (41mm) inside diameter. It is recommended that two clamps be used on each end of a wet exhaust installation. Professionals also utilize the high strength 316 T Bolt clamps in applications such as water treatment and sewage systems, military, filter bags, telecommunication devices, sanitary systems, food and pharmaceutical processing equipment. Technical Specification: Effective size range: 1.89" - 2.2" (48mm-56mm). SAE # 32. 100% marine grade 316 Stainless Steel Band, Bolt and Nut. High strength with superior welded construction. Meets or exceeds SAE Spec. J1508 for T-Bolt clamps. 3/4" Band Width. Max. Torque Spec 75 in. lbs.

Features

• 100% marine grade 316 stainless steel band, bolt and nut. High strength superior welded construction.
• Perform well in saltwater applications and offer better corrosion resistance than 304 T-bolt band clamp. Meets or exceeds SAE Spec. J1508 for T-Bolt clamps.
• Effective range: 1.89" - 2.2" (48mm-56mm). SAE # 32.
• Floating bridge and rolled edges to protect soft hoses. 3/4 inch (19mm) band width.
• Maximum Torque Spec 75 in. lbs. Recommed to use two clamps for wet exhaust application.

Specifications
