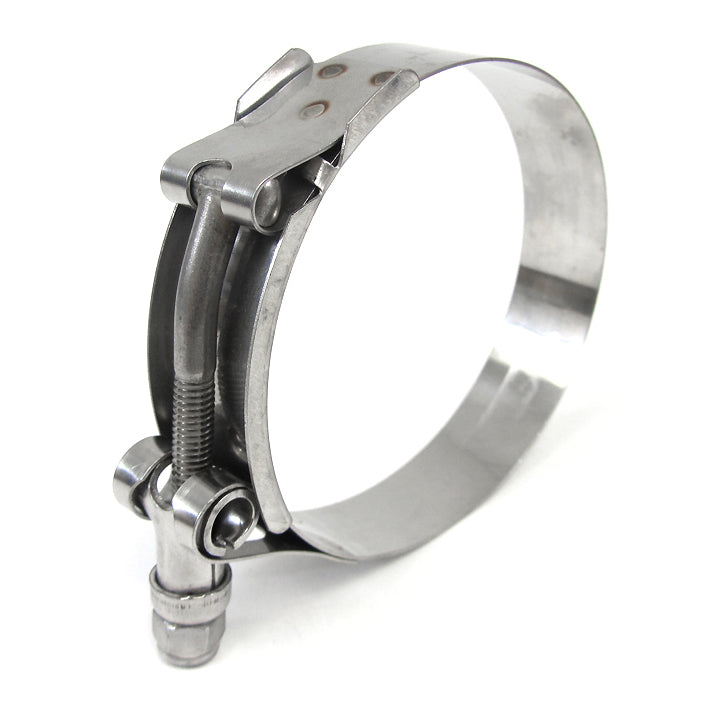

HPS 304 Stainless Steel T-Bolt Clamp with Floating Bridge (SSTC-95-103)
HPS 100% Stainless Steel T-Bolt Clamp with Floating Bridge 3.75"-4.06" (95mm-103mm) for 3.5" inch ID hose provides leak-proof connections in a wide variety of industrial, commercial, and military applications. HPS manufacture our clamps from 300 series stainless steel with rounded band edges to protect soft hose materials. HPS Stainless Steel T-Bolt Band Clamps provide high tensile strength, durability, and corrosion resistance. HPS Stainless Steel T Bolt Clamps are the perfect choice for medium and heavy-duty applications.HPS Stainless Steel T-Bolt Band Clamps are frequently installed on Coolant and Air-Intake Systems for Construction Vehicle, Truck, Aircraft, Marine and Bus Engines, Duct Systems, Baghouse Equipment, Irrigation Systems, Medical Equipment and Precleaners. Technical Specification: SAE #92. Effective Size Range: 3.75"-4.06" (95mm-103mm). 100% Stainless Steel Band, Bolt and Nut. Floating bridge and rolled edges to protect soft hoses. Superior welded construction. Meets or exceeds SAE Spec. J1508 for T-Bolt clamps. 3/4" Band Width. Max. Torque Spec 75 in. lbs. Quantity: 1
Features
- 100% Stainless Steel Band, Bolt and Nut. Superior welded construction
- SAE # 92. Meets or exceeds SAE Spec. J1508 for T-Bolt clamps
- Effective Diameter Range: 3.75"-4.06" (95mm-103mm)
- Floating bridge and rolled edges to protect soft hoses. 3/4" Band Width.
- Max. Torque Spec 75 in. lbs
Specifications
| Product Type | 304 Stainless Steel T-Bolt Clamp with Floating Bridge |
| Package Quantity | 1 |
| Size Number | 92 |
| Material and Components | 304 Stainless Steel |
| Effective Diameter Range | 3.75"-4.06" (95mm-103mm) |
| Recommend to be used on HPS Hoses with these INSIDE Diameter | 3.5" (89mm) |
