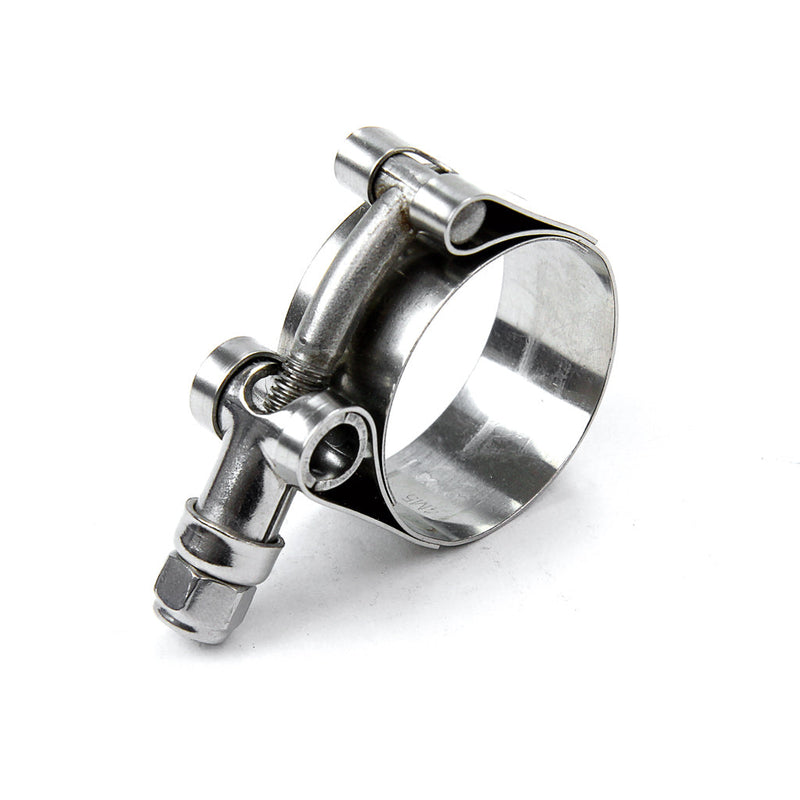

HPS 304 Stainless Steel T-Bolt Clamp (SSTC-32-37)
HPS 100% Stainless Steel T-Bolt Clamp 1.25"-1.46" (32mm-37mm) for 1" inch ID hose provides leak-proof connections in a wide variety of industrial, commercial, and military applications. HPS manufacture our clamps from 300 series stainless steel with rounded band edges to protect soft hose materials. HPS Stainless Steel T-Bolt Band Clamps provide high tensile strength, durability, and corrosion resistance. HPS Stainless Steel T Bolt Clamps are the perfect choice for medium and heavy-duty applications.HPS Stainless Steel T-Bolt Band Clamps are frequently installed on Coolant and Air-Intake Systems for Construction Vehicle, Truck, Aircraft, Marine and Bus Engines, Duct Systems, Baghouse Equipment, Irrigation Systems, Medical Equipment and Precleaners. Technical Specification: Effective Size Range: 1.25"-1.46" (32mm-37mm). 100% Stainless Steel Band, Bolt and Nut. Superior welded construction. Meets or exceeds SAE Spec. J1508 for T-Bolt clamps. 3/4" Band Width. Max. Torque Spec 75 in. lbs. Quantity: 1
Features
- 100% Stainless Steel Band, Bolt and Nut. Superior welded construction
- Meets or exceeds SAE Spec. J1508 for T-Bolt clamps
- Effective Diameter Range: 1.25"-1.46" (32mm-37mm)
- Rolled edges to protect soft hoses. 3/4" Band Width.
- Max. Torque Spec 75 in. lbs
Specifications
| Product Type | 304 Stainless Steel T-Bolt Clamp |
| Package Quantity | 1 |
| Material and Components | 304 Stainless Steel |
| Effective Diameter Range | 1.25"-1.46" (32mm-37mm) |
| Recommend to be used on HPS Hoses with these INSIDE Diameter | 1" (25mm) |
