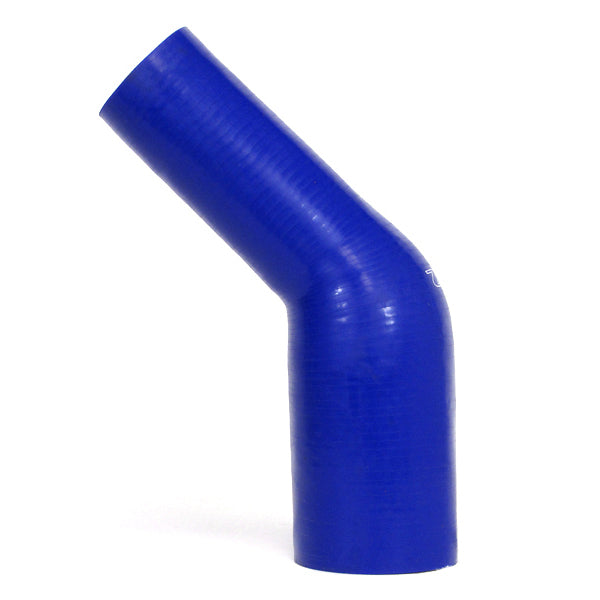

HPS 2" - 2.5" (51mm - 63mm) Silicone Elbow Reducer - 45 Degree 5" Long - Blue (HTSER45-200-250-BLUE)
HPS 2" - 2-1/2" (51mm - 63mm) High Temp 4-ply Reinforced Silicone 45 Degree Elbow Reducer Coupler Hose meet and exceed SAEJ20 industry standards, ideal for heavy duty pressure connections and provides excellent resistance for high temperature applications. HPS performance silicone 45 Degree Elbow Reducer Coupler Hose is designed and engineerd to meet high performance requirements specified in various industry standards, therefore make it great for marine and industrial use, custom turbo or intercooler piping fabrication, DIY intake or radiator cooling system. Technical Specification: Product Type: Silicone 45 Degree Elbow Reducer Coupler Hose. Temperature Range:- 65 deg. F to + 350 deg. F (177 deg. C). Reinforced Layer: 4-ply. Hose Inside Diameter: 2" - 2.5" (51mm - 63mm). Hose Outside Diameter: 2.41" - 2.88" (61mm - 73mm). Leg Length on each side: 4". Wall Thickness: 4.5mm (+/- 0.5mm). Color: Blue. UV and ozone resistant. Remark: Silicone hose is NOT compatible with fuel or oil.
Features
- Silicone hose is NOT compatible with fuel or oil
- Made of High Temperature 4-ply Reinforced Silicone
- Meet and exceed SAEJ20 industry standards, ideal for heavy duty pressure connections and provides excellent resistance for high temperature applications
- Great for marine and industrial use, custom turbo or intercooler piping fabrication, DIY intake or radiator cooling system
- UV and ozone resistant
Specifications

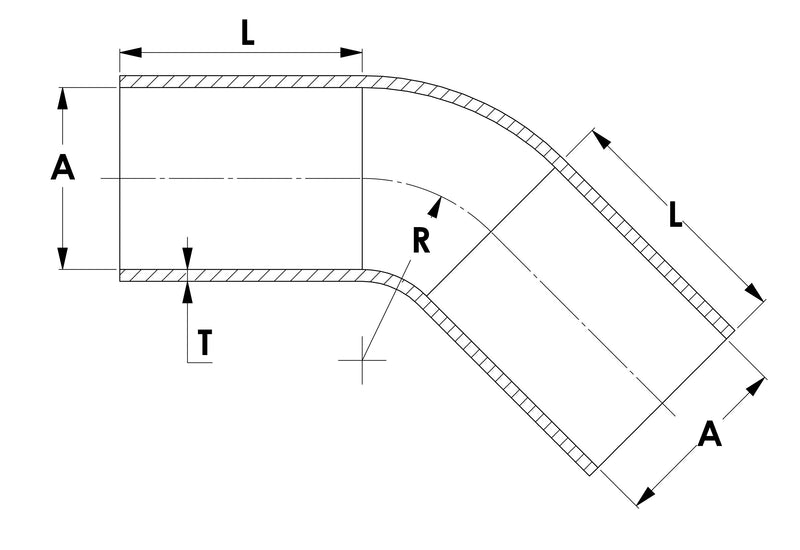

| Product Type | Silicone Elbow Reducer - 45 Degree |
| Inside Diameter (inch) | 2" - 2-1/2" |
| Inside Diameter (mm) | 51mm - 63mm |

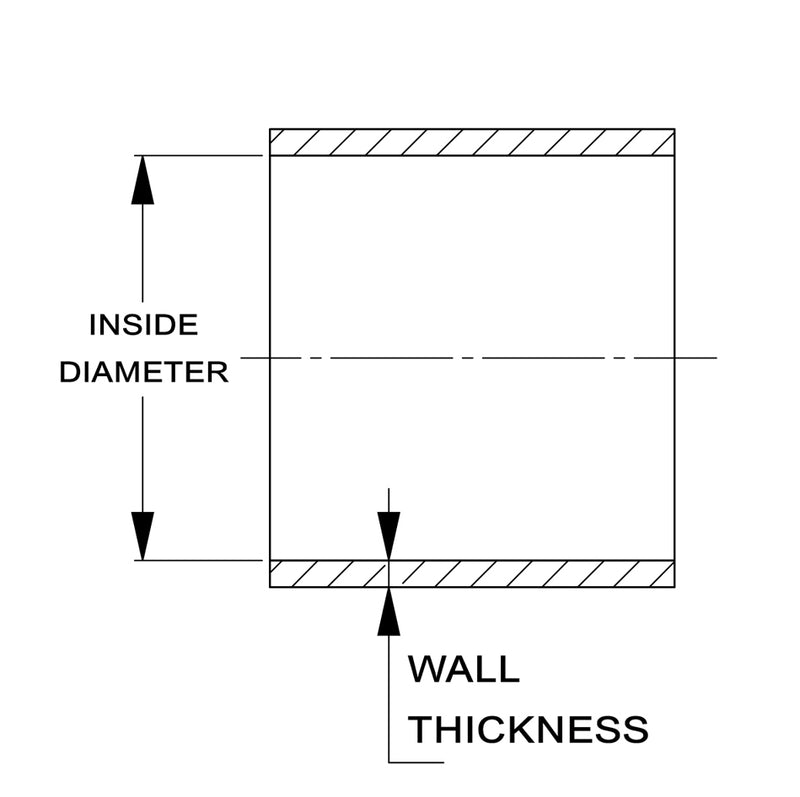

| Inside Diameter | 2" - 2.5" (51mm - 63mm) |
| Outside Diameter | 2.41" - 2.88" (61mm - 73mm) |
| Length / Leg Length | 5" |
| Reinforced Layer | 4-ply Polyester |
| Max. Temperature Rating | 350F |
| Wall Thickness | 5mm |
| Oil-Resistant | No |
