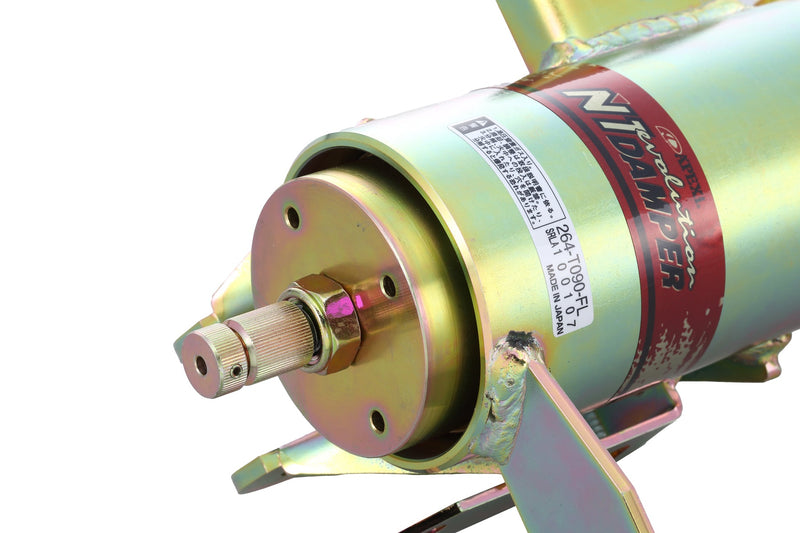

A'PEXi - N1 Evolution Damper - Toyota GR86 (2022+)
A'pexi

A'PEXi - N1 Evolution Damper - Toyota GR86 (2022+)

SKU264CT095
$2,899.00
Call for stock status
Pay over time with Affirm on orders over $35. See if you qualify

Ask a Question

About: A'PEXi - N1 Evolution Damper - Toyota GR86 (2022+)
Fast U.S. Shipping
Authorized Dealer
Call To Confirm Stock

The A'PEXi N1 Evolution Damper is engineered for both circuit and street driving. Each application undergoes repeated vehicle-specific installation and testing.

Features

  • High-rigidity pillow ball upper mounts
  • Dedicated damper fluid resistant to degradation for stable damping over time
  • 25-step damping force adjustment and full-length height adjustment
  • Lightweight, compliant N1 Spring II
  • Compatible with overhaul (O/H) and damping re-setting services
  • Available in Sports Standard and Special Order (custom-made) specifications
  • Redesigned φ46 resin-bonded piston with a linear port design that keeps damping linear up to approximately 1.5 m/s piston speed
  • Resin piston ring reduces friction and abnormal noise and extends service life
  • CNC-machined duralumin upper plate with a high-precision NMB pillow ball joint
  • Revised bump rubber shapes and extended cylinder-side damper stroke
  • Camber-adjustable pillow ball upper mount included for inverted MacPherson strut applications
  • High-strength steel monotube damper body with zinc plating to reduce galvanic corrosion
  • Full-length height adjustment
  • Uses N1 NEW Damper Fluid, developed to resist heat fade, improve break-in and maintain stable damping

Specifications

  • Part Number: 264CT095 - Rear Lower Adjust Case- Rubber Bushing) 264CTP95 - Rear Lower Adjust Case- Pillow-Ball)
  • Damper Model: N1 Evolution Damper
  • Piston Diameter: 46mm.
  • Spring: Length / Rate: Front: 6 inch / 10K- Rear: 7 inch / 8K
  • Damper Camber Adjustment: Front: Yes, Rear: Not applicable
  • Damper Height Adjustment Range (mm): Front: +40mm ~ -70mm; Rear: +15mm ~ -65mm
  • Bolt-On Installation: Yes

Fitment

  • Year: 2022+
  • Make: Toyota
  • Model: GR86
  • Engine: 2.4 L FA24D H4
  • Chassis: ZD8
BrandA'pexi
TypeCoilovers
SKU264CT095
Weight65.0 lb
Make["Toyota"]
Model["GR86"]
