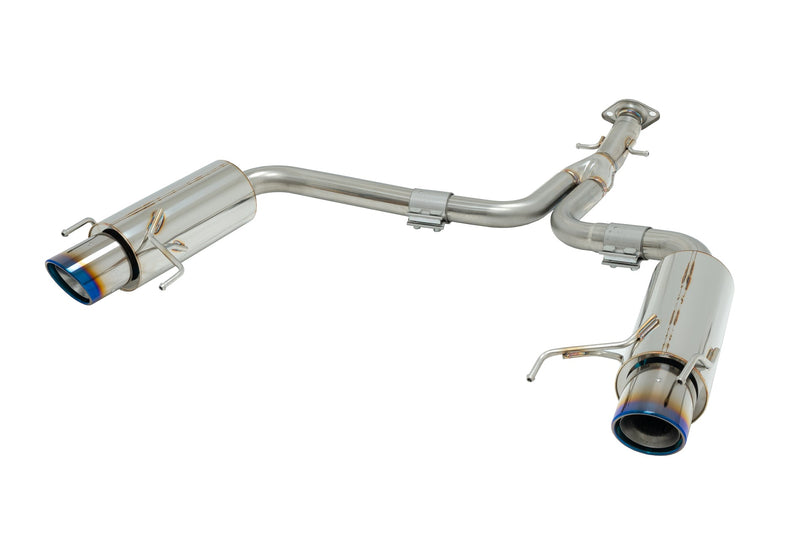

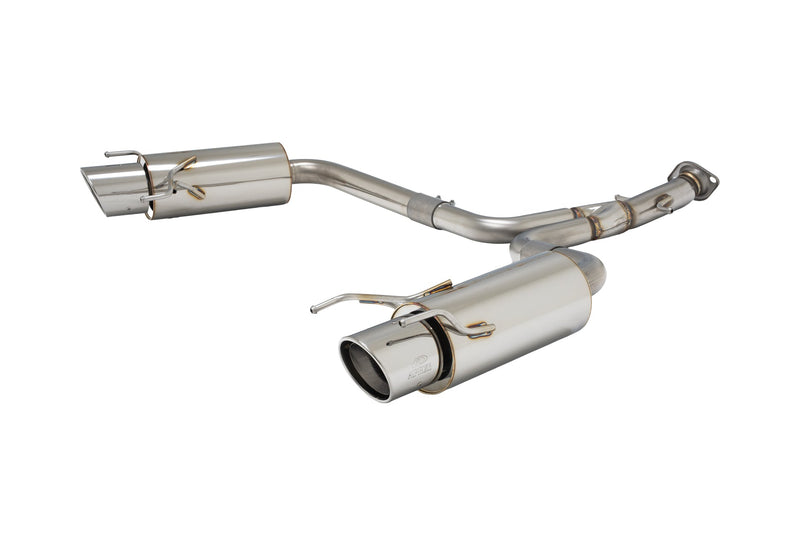

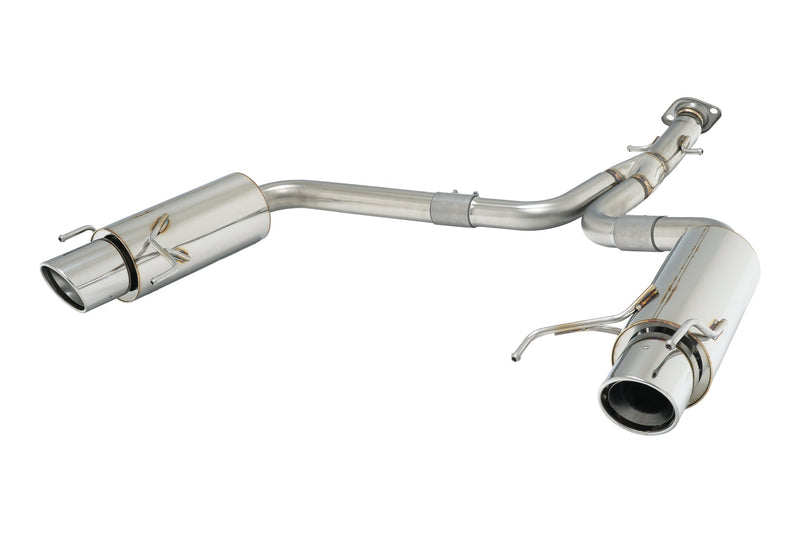

A'PEXi - N1 Evo Extreme (Axleback) - Lexus IS250 / IS350 (2006~2013)
The N1 Evolution Extreme carries forward the proven performance heritage of the iconic N1 muffler, engineered for maximum exhaust efficiency through its straight-through layout design. At its core is an internal hybrid silencer that balances raw power and free-flowing exhaust characteristics with refined sound resonance.

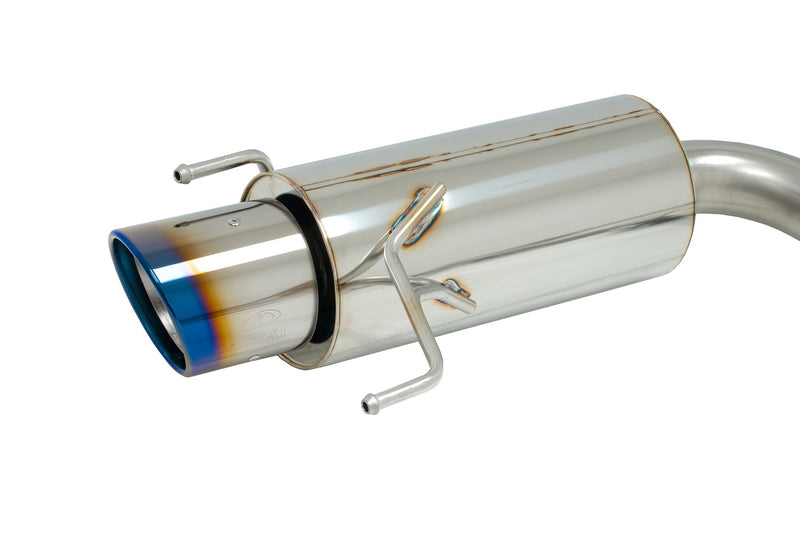

A newly designed titanium muffler tip enhances both function and form, constructed from lightweight rolled titanium, riveted onto a dual-pipe structure. This design not only acts as a diffuser to reduce exhaust temperatures but also delivers a striking heat-gradient finish for a true motorsport aesthetic.
Premium TIG-welded SUS304 stainless steel construction, delivering both durability and performance gains while maintaining a refined sound level.
Patented Megaphone piping structure optimizes torque and throttle response across the power-band, utilizing a unique swirling exhaust gas flow effect that has been proven through years of performance results.
Specifications
- Part Number: Stainless Steel Tips : 164AKT27Titanium Tips : 164-KT27
- Exhaust Type: N1 Evolution Extreme Muffler (N1-X)
- Piping Diameter: 70mm. to 60.5mm. to 60.5mm. x2
- Tip Diameter: 123mm. x 2
- Exhaust Tip Style: Stainless Polished Round- Dual wall rolled, Angle cut (Riveted); Titanium Burnt Round- Dual wall rolled, Angle cut (Riveted)
- Pieces: 3
- Piping Material: SUS304 Stainless Steel
- Muffler Material: SUS304 Stainless Steel
- Muffler Tip Material: SUS304 Stainless; TP270 Titanium
- System Weight: 32lbs
- Bolt-On Installation: Yes
Fitment
- Year: 2006-2013
- Make: Lexus
- Model: IS250 / 350
- Body Style: 4-Door Sedan
- Engine: 4GR-FSE- 2GR-FSE
- Chassis: GSE20, GSE25 / GSE21, GSE26
