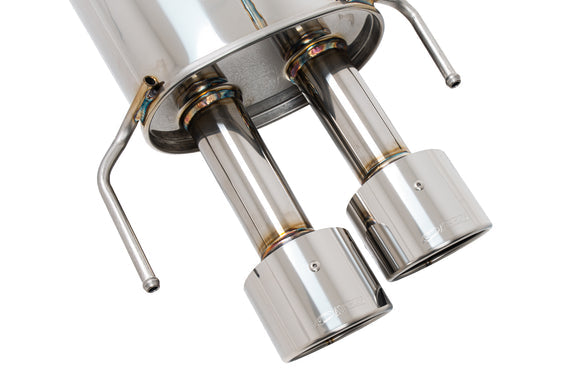

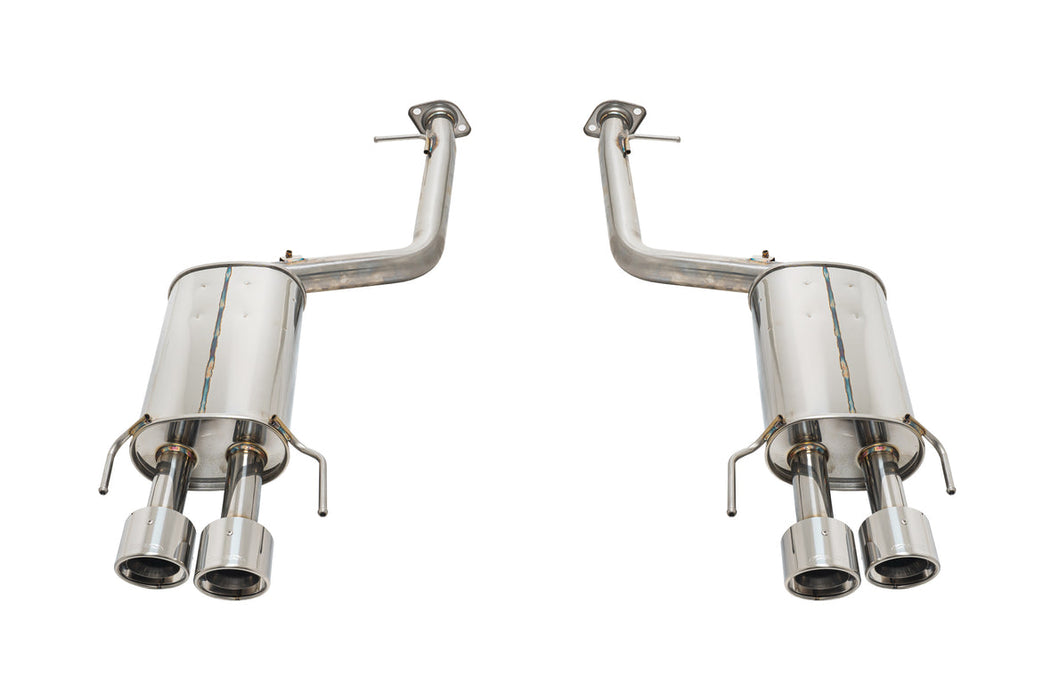

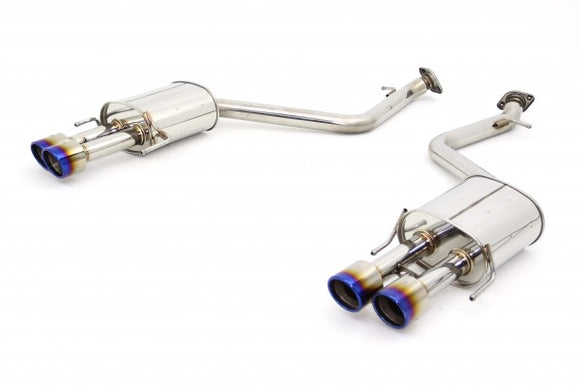

N1-X Evolution Extreme Muffler Axleback Exhaust (Titanium Tip)
2013-2020 Lexus GS350 RWD/AWD
The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form.
PRODUCT FEATURES:
High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
Matched and manufactured for select chassis
Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
***NOTE: Requires Aftermarket Rear Bumper Lip Spoiler for fitment compatibility or modification/trimming of OEM Factory Rear Lower Diffuser Panel***
Bolt-On
Yes
Part Number
164-KT07 - Titanium Tips
164AKT07 - Stainless Steel Tips
Year
2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020
Make
Lexus
Model
GS350 AWD, GS350 RWD
Body Style
4-Door Sedan
Engine
2GR-FSE
Chassis
GRL10, GRL11, GRL15
Exhaust Type
N1 Evolution Extreme Muffler (N1-X)
Piping Diameter
60.5mm. x 2
Tip Diameter
93mm. x 4
Pieces
2
Exhaust Tip Style
Titanium Round - Dual wall rolled, Angle cut (Riveted)
Stainless Steel - Dual wall rolled, Angle cut (Riveted)
Piping Material
SUS304 Stainless Steel
Muffler Material
SUS304 Stainless Steel
Muffler Tip Material
Titanium
Stainless Tip
System Weight
33.50 lbs. (Includes Full Exhaust System, gaskets and hardware pack) (Stock- 33.70 lbs.)
Sound Level
Sound Level: 89.7 dB @ 4,500 RPM.
Special Notes
Modular design-> Midpipe and Rear Section can be interchanged with factory exhaust components - NOTE: ***Requires Aftermarket Rear Bumper Lip Spoiler for fitment compatibility***
