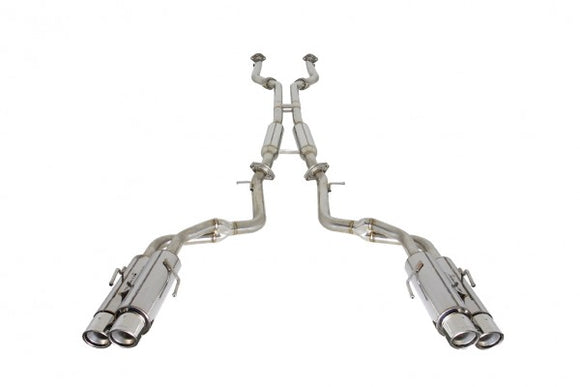

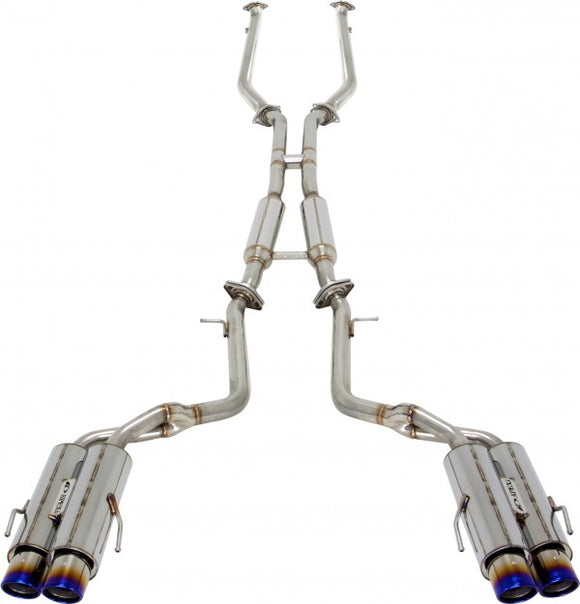

N1-X Evolution Extreme Muffler Catback Exhaust (Stainless & Titanium Tips)
2016+ Lexus GS-F
The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance.
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
Bolt-On
Yes
Part Number
- Titanium: 164KT212
- Stainless Steel: 164KT212-SS
Year
2016
Make
Lexus
Model
GS-F
Body Style
4-Door Sedan
Engine
2UR-GSE
Chassis
URL10
Exhaust Type
N1 Evolution Extreme Muffler (N1-X)
Piping Diameter
65mm. x 2 - 50mm. x 4
Tip Diameter
93mm. x 4
Pieces
5
Exhaust Tip Style
Stainless Steel Round- Dual wall rolled, Angle cut (Riveted)
Piping Material
SUS304 Stainless Steel
Muffler Material
SUS304 Stainless Steel
Muffler Tip Material
- Titanium
- SUS304 Stainless Steel
System Weight
61.55 lbs. (Includes Full Exhaust System, gaskets and hardware pack) (Stock- 78.25 lbs.)
Sound Level
Sound Level: 91.3 dB @ 4,500 RPM.
Special Notes
Modular design->Midpipe and Rear Section can be interchanged with factory exhaust components.
