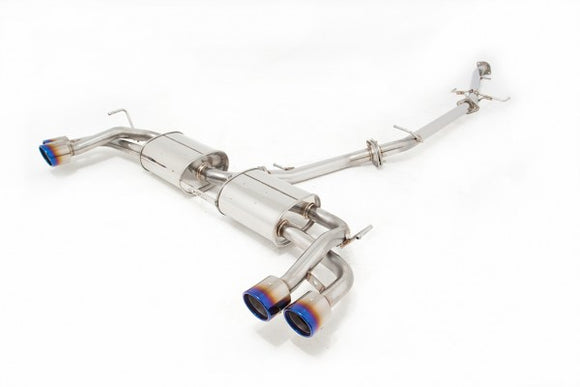

N1-X Evolution Extreme Muffler (Stainless & Titanium)
2015-2017 Lexus NX200t FWD/AWD
The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form.
PRODUCT FEATURES:
High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
Matched and manufactured for select chassis
Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
Bolt-On
Yes
Part Number
- 164KT206-SSP (Stainless)
- 164KT206P (Titanium)
Year
2015, 2016, 2017
Make
Lexus
Model
NX200t
Body Style
5-Door SUV
Engine
8AR-FTS
Chassis
AGZ10, AGZ15
Exhaust Type
N1 Evolution Extreme Muffler (N1-X)
Piping Diameter
65mm. x 2 - 50mm. x 4
Tip Diameter
93mm. x 4
Pieces
4
Exhaust Tip Style
Oval-Dual wall rolled, Angle cut
Piping Material
SUS304 Stainless Steel
Muffler Material
SUS304 Stainless Steel
Muffler Tip Material
- SUS304 Stainless Steel
- Titanium
System Weight
45.20 lbs. (Includes Full Exhaust System, gaskets and hardware pack) (Stock- 62.20 lbs.)
Sound Level
Sound Level: 89.7 dB @ 4,500 RPM. Modular design->Midpipe and Rear Section can be interchanged with factory exhaust components
Special Notes
NOTE: Do Not Use metal polish, cleaners, solvents, etc. containing abrasive chemicals/substances when cleaning titanium tip
