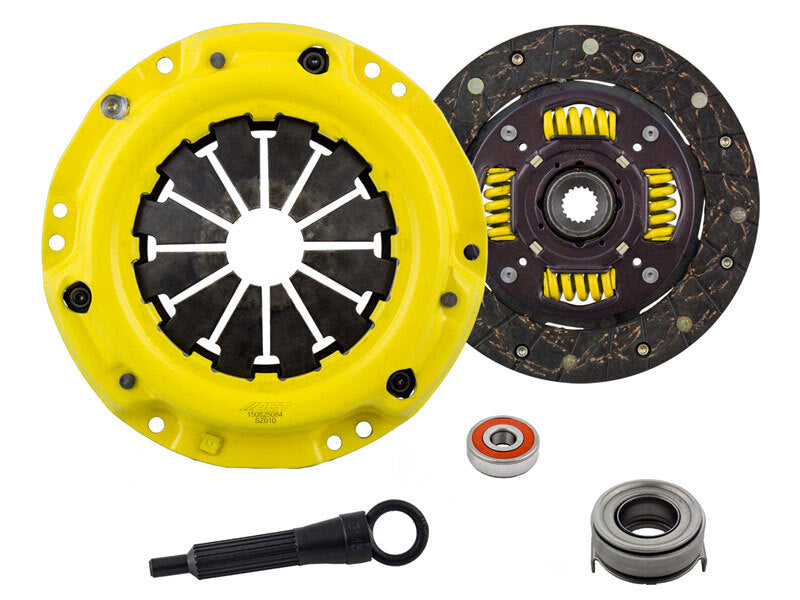

SZ1-HDMM kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT modified spring-centered street discs feature premium organic friction material with high copper content for better heat transfer and steel-backed lining for burst strength and durability. These discs are modified with reduced marcel for faster shift action to complement ACT pressure plates. the heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. Modified street discs provide smooth engagement and quiet operation, with increased strength and reliability.
Warranty
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1987-1988	Chevrolet	Sprint	Base
1987-1988	Chevrolet	Sprint	Metro
1987-1988	Chevrolet	Sprint	Turbo
1995	Geo	Metro	Base
1995-1997	Geo	Metro	LSi
1995-2000	Suzuki	Esteem	GL
1995-2000	Suzuki	Esteem	GLX
1995-1999	Suzuki	Swift	Base
1990-1994,2000-2001	Suzuki	Swift	GA
1990,2000-2001	Suzuki	Swift	GL
1989-1990	Suzuki	Swift	GLX
1990-1994	Suzuki	Swift	GS
1990-1994	Suzuki	Swift	GT
1989	Suzuki	Swift	GTI
1990	Suzuki	Swift	S
